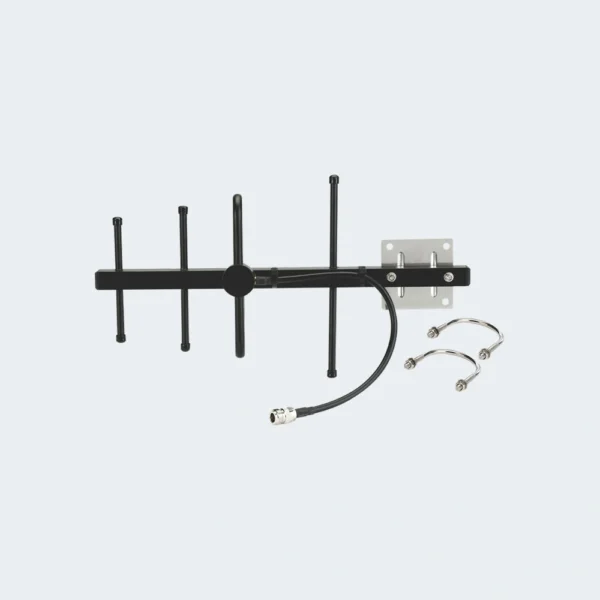

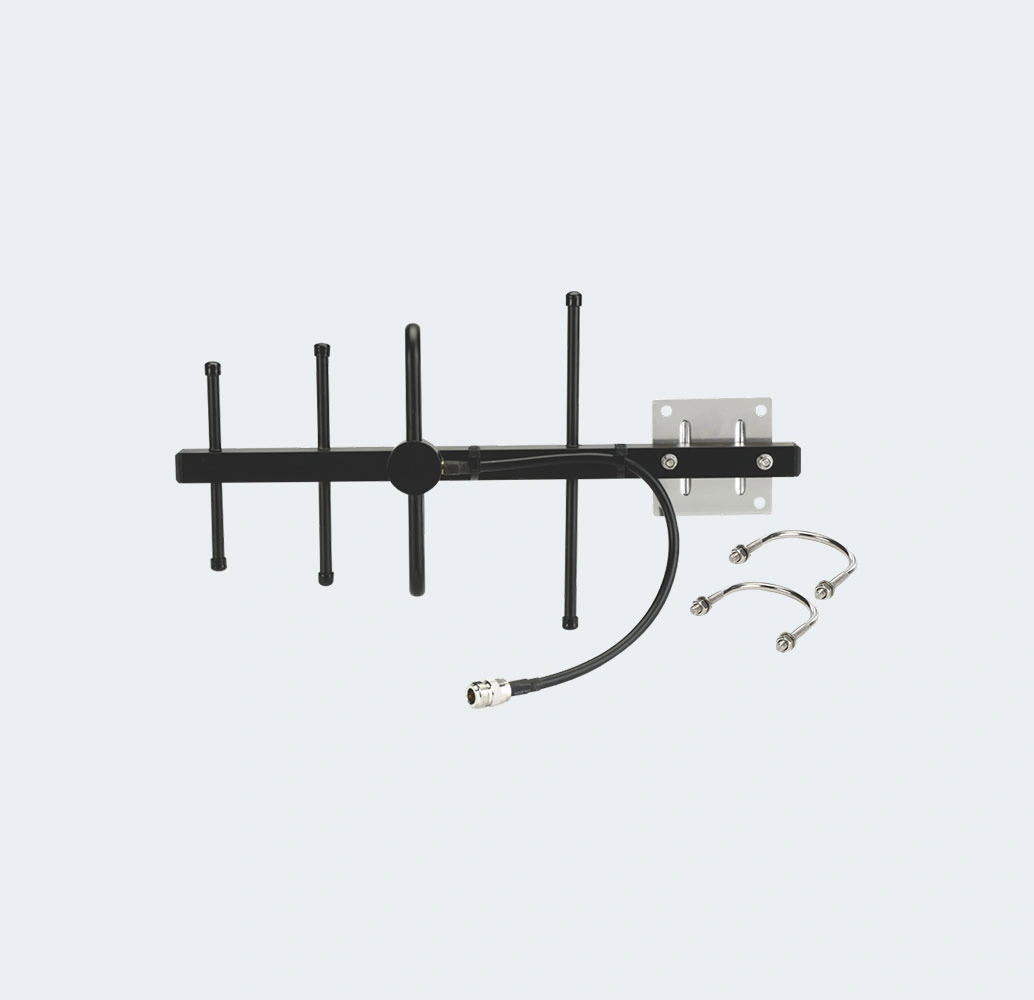

Yagi 700 MHz 4G LTE Antenna - 6dB Gain
Model 468-YB
Digital Antenna now manufactures premium quality yagi
antennas for the new 700 MHz bands. Applications include 4G LTE,
SMH bands, point to multipoint and public safety. Model 468-YB features a
wider beamwidth, 6dB gain and a rugged powder coated finish to
provide outstanding corrosion resistance and longevity in the
harshest environments. Maximum performance and distance is
achieved with their outstanding VSWR of less than 1.5:1 across
the entire frequency band (650-830 MHz).
Digital Antenna’s yagis include an integrated mounting plate
with stainless steel U-Bolts for pole mounting and a pigtail
terminated with an N type female connector. To ease installation,
Digital Antenna also offers
factory terminated
cable assemblies in lengths from 10 to 100 feet.
Assembled, tested and tuned by hand for
maximum performance, quality and durability.
- 4G LTE, SMH bands, Point to Multipoint, Public Safety
- Rugged powder coated finish for exterior use
- Focused power captures more signals
- Excellent front to back ratio
- VSWR <1.5:1 across entire band
- Mounting hardware included
- Five year warranty
| 468-YB |
| 650-830 MHz |
| <1.5: 1 = 650-830 MHz |
| 16" L x 9" H x 2" D |
| H52° V50° |
| Outdoor |
| 6dB |
| Type N female |
| U-bolts for pole (included) |
| 50W |
| 50 ohms |
| 4 |
| >18dB |
| Vertical or horizontal |
| DC ground |
|
