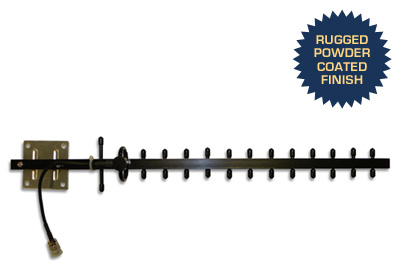

Wideband Yagi 880-960 MHz Antenna - 14dB Gain

Model 446-YB

Digital Antenna’s 446-YB antenna offers an extremely wide frequency range, high gain and a rugged powder coated finish. Applications include GSM 900, ISM, CMTS and DSRR. This antenna has an excellent front to back ratio to block unwanted signals and provides outstanding corrosion resistance and longevity in the harshest environments. Maximum performance and distance is achieved with an outstanding VSWR of less than 1.5:1 across the entire frequency band (880-960 MHz).

Digital Antenna’s yagis include an integrated mounting plate with stainless steel U-Bolts for pole mounting and a pigtail terminated with an N type female connector. For ease of installation, Digital Antenna offers factory terminated cable assemblies in lengths from 10 to 100 feet.

Assembled, tested and tuned by hand for maximum performance, quality and durability.

Applications:

  • GSM 900, ISM, CMTS, DSRR

Features:

  • Rugged powder coated finish for exterior use
  • Focused power captures more signals
  • Excellent front to back ratio
  • VSWR <1.5:1 across entire band
  • Mounting hardware included
  • Five year warranty

Specifications:

Model 446-YB
Frequencies 880-960 MHz
VSWR <1.5: 1 = 880-960 MHz
Dimensions 48" L x 7.25" H x 2" D
Weight 19 oz.
Beamwidth H51° V31°
Use Outdoor
Gain 14dB
Connector Type N female
Mount U-bolts for pole (included)
Cable 6" low loss DA240
Max Power 50W
Impedance 50 ohms
Number of Elements 14
Front to Back Ratio >18dB
Polarization Vertical or horizontal
Lightning Protection DC ground
Wind Rating >110 mph
