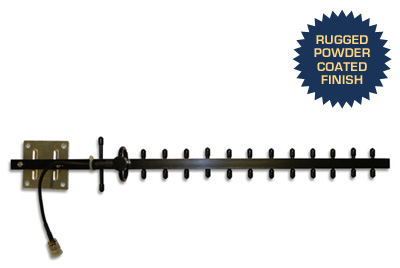

Wideband Yagi 1550-2350 MHz 4G Antenna - 14dB Gain

Model 492-YB

Digital Antenna’s 492-YB antenna offers an extremely wide frequency range, high gain and a rugged powder coated finish. Applications include 4G, 3G, LTE, PCS, DCS, AWS, IMT, WCDMA, and cellular. This antenna has an excellent front to back ratio to block unwanted signals and provides outstanding corrosion resistance and longevity in the harshest environments. Maximum performance and distance is achieved with an outstanding VSWR of less than 1.5:1 across the entire frequency band (1550-2350 MHz).

Digital Antenna’s yagis include an integrated mounting plate with stainless steel U-Bolts for pole mounting and a pigtail terminated with an N type female connector. For ease of installation, Digital Antenna offers factory terminated cable assemblies in lengths from 10 to 100 feet.

Assembled, tested and tuned by hand for maximum performance, quality and durability.

Applications:

  • 4G, 3G, LTE, PCS, DCS, AWS, IMT, WCDMA, Cellular

Features:

  • Rugged powder coated finish for exterior use
  • Focused power captures more signals
  • Excellent front to back ratio
  • VSWR <1.5:1 across entire band
  • Mounting hardware included
  • Five year warranty

Specifications:

Model 492-YB
Frequencies 1550-2350 MHz
VSWR <1.5: 1 = 1550-2350 MHz
Dimensions 27" L x 4" H x 1.5" D
Beamwidth H51° V31°
Use Outdoor
Gain 14dB
Connector Type N female
Mount U-bolts for pole (included)
Max Power 50W
Impedance 50 ohms
Number of Elements 14
Front to Back Ratio >18dB
Polarization Vertical or horizontal
Lightning Protection DC ground
