MIMO Backhaul 1900 MHz Pole Mount Antenna - 8dB Gain

Model 1229-PB-15

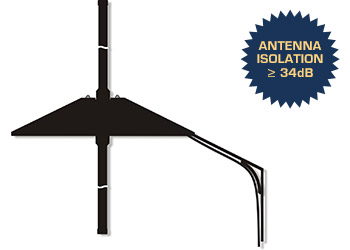

Digital Antenna’s commercial grade backhaul antenna features twin 1900MHz antennas with 8dB gain arranged one above the other with an attenuator shield between the antenna bases. Extraordinary top to bottom antenna isolation of 34dB or greater provides MIMO systems with extremely minimal crosstalk or intermod between transmit and receive functions. Either antenna can be used for transmit or receive and handles 25W continuous power. The VSWR from 1850MHz to 1990MHz is less than 1.5:1.

The antenna structure’s extremely rugged construction consists of heavy, hard anodized, aluminum and marine grade antenna radomes to withstand the rigors of remote areas. The black anodized coating gathers solar heat while the attenuator shield angle allows precipitation to rapidly disperse.

The mounting bracket mounts flush to a flat surface or will accept 2.25” U-bolts for mounting on poles up to 2” in diameter.

Applications:

  • Cellular, Rural, Utility, Small Cell Backhaul, MIMO (multiple-input, multiple-output), Point to Point, Point to Multipoint, Multipoint to Multipoint

Features:

  • Dual 8dB powerful brass arrays
  • Angled attenuator shield
  • VSWR <1.5:1 across entire band
  • Accepts 25W continuous power
  • 40dB antenna isolation
  • Rugged construction
  • Five year warranty

  • Mount: Flush to flat surface or use included bracket for pole
  • Connector: Type N male
  • Cable: Two 30' lengths of black DA340 cable included

Specifications:

Model 1229-PB-15
Frequencies 1850-1990 MHz
Number of Antennas 2
VSWR <1.5: 1 = 1850-1990 MHz
Dimensions 50" L x 16" H x 22" D
Weight 6 lbs.
Beamwidth 20˚
Use Outdoor
Gain 8dBi at 1900 MHz
Number of Cables 2
Cables 30' of DA340 (black)
Connector Type N male
Mount Bracket for up to 2" pole (included)
Mounting Bracket Anodized aluminum
Max Power 25W
Impedance 50 ohms
Isolation ≥34dB
Polarization Vertical
Wind Rating 100 mph
Antenna Material Woven fiberglass
Exterior Finish UV stable polyurethane
Lightning Protection DC ground
