8′ 6dB Marine VHF w/ male ferrule

SKU:
Placeholder

8′ 6dB Marine VHF w/ male ferrule

SKU: N/A Categories: ,

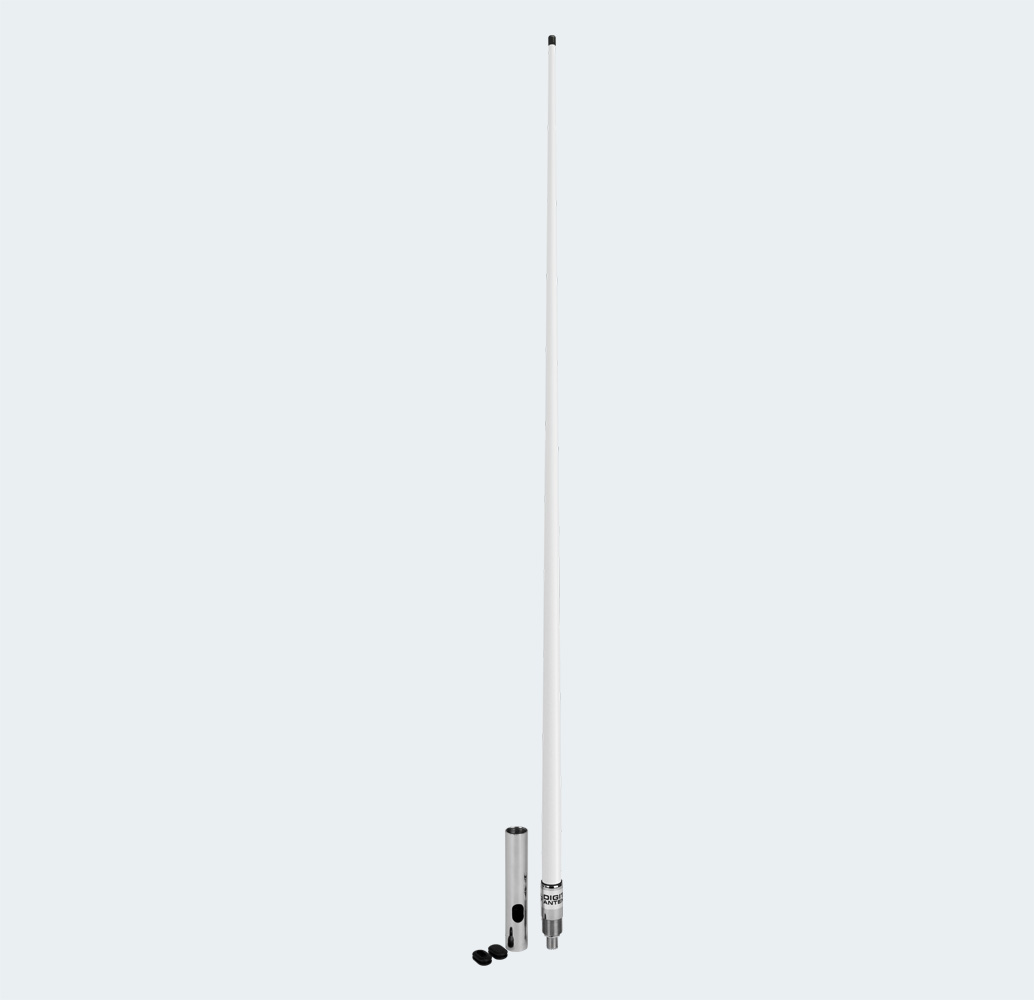

Digital Antenna’s 800 Series 8′ VHF antenna with an SO-239 at base allows custom cable lengths for reduced signal loss and versatile installation. Built with 316 stainless steel, a high-gloss UV-resistant fiberglass finish, and precision brass radiators, it maximizes analog and digital RF signal range for superior performance. (Cable sold separately)

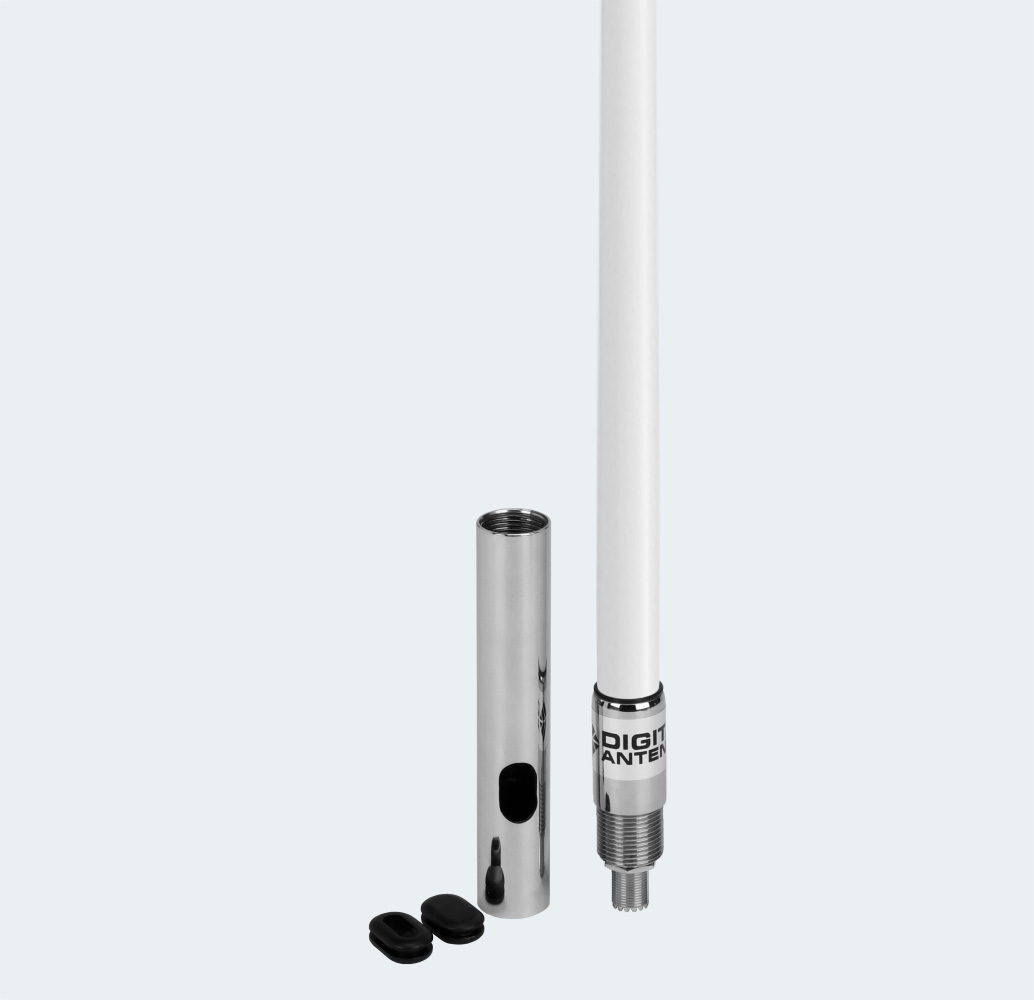

  • SO-239 base connector for secure connection to custom cable run
  • High-gloss urethane finish ensures UV resistance and durability
  • Powerful brass radiators maximize signal distance
  • Outstanding VSWR of <1.5:1 for maximum radiated power
  • Mounts to standard 1″-14 threaded bases for universal compatibility
  • Accommodates users’ choice of cable for superior signal transmission
  • Hand built, tested and tuned in the USA for optimal performance
  • Backed by a 5-year warranty for long-term reliability

Price range: $568.50 through $606.64

Product Specifications

Model Number 829-VW-S and 829-VB-S
Radiation Pattern Omni-Directional
Gain 6.0dBi
VSWR <1.5:1 = 156-158 MHz
Max Input Power 100 watts
Impedance 50 ohms
Lightning Protection DC Ground
Dimensions 95” x 1” tapered OD
Exterior Finish UV stable high gloss urethane
Base 316 stainless steel
Cable Not included
RF Connector SO-239
Wind Rating 100 mph
Mounts 1”-14 male thread (sold separately)
Warranty 5 years
  • Greater Range & Signal Strength – 8’ height allows the signal to travel farther, extending communication range.
  • Better for Offshore & Open-Water Use - Essential for boaters venturing offshore where longer-range communication is critical.
  • Low radiation angle – 6dB gain directs the signal outward, maximizing range and clarity for powerboats, yachts, and larger vessels.
  • Custom Cable Runs – Supports high-grade, low-loss coaxial cables (e.g. LMR-400, RG-8X), ideal for long or complex routing. Easily replace cable without replacing the antenna.
  • Easier Cable Replacement & Maintenance - Useful for professional or commercial boats that require frequent maintenance and reliability.
