WideBand 4G|5G|LTE|WiFi Omni with F114 & DM194
SKU:
WideBand 4G|5G|LTE|WiFi Omni with F114 & DM194
Product Features

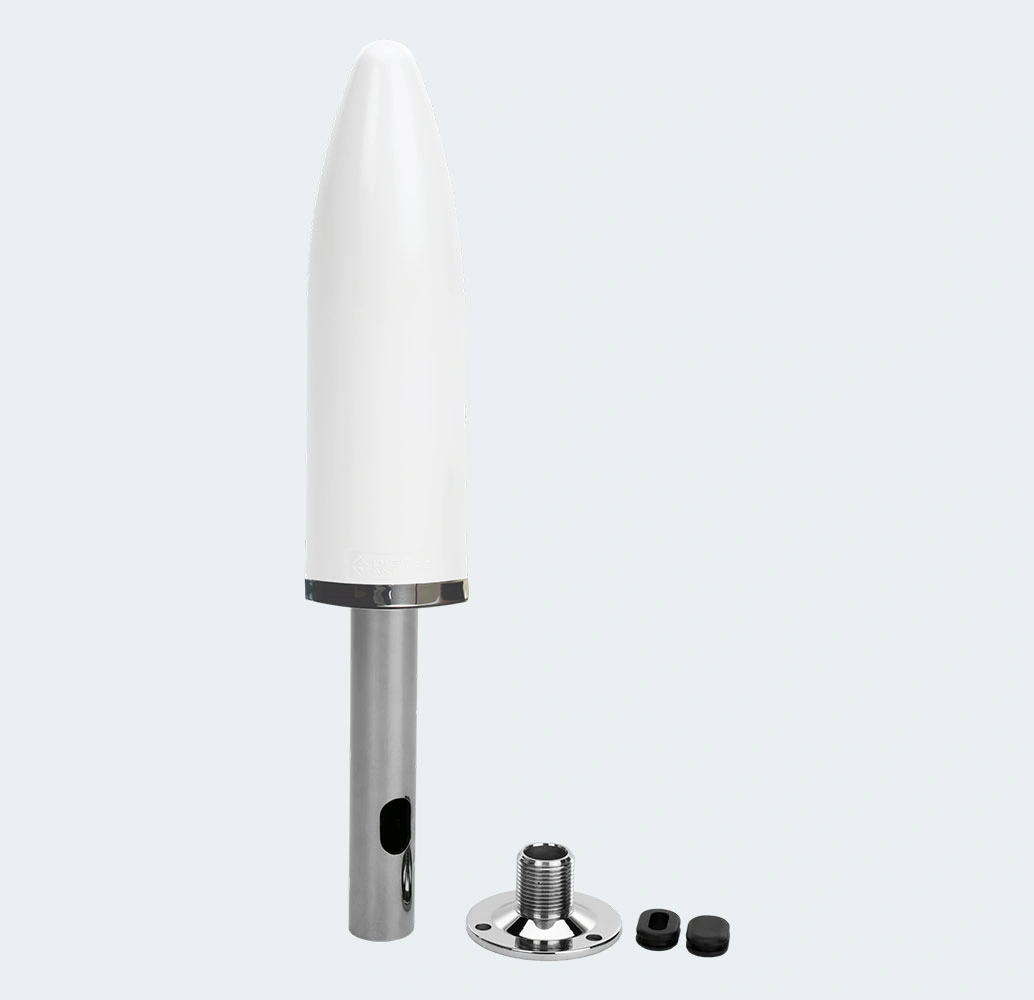

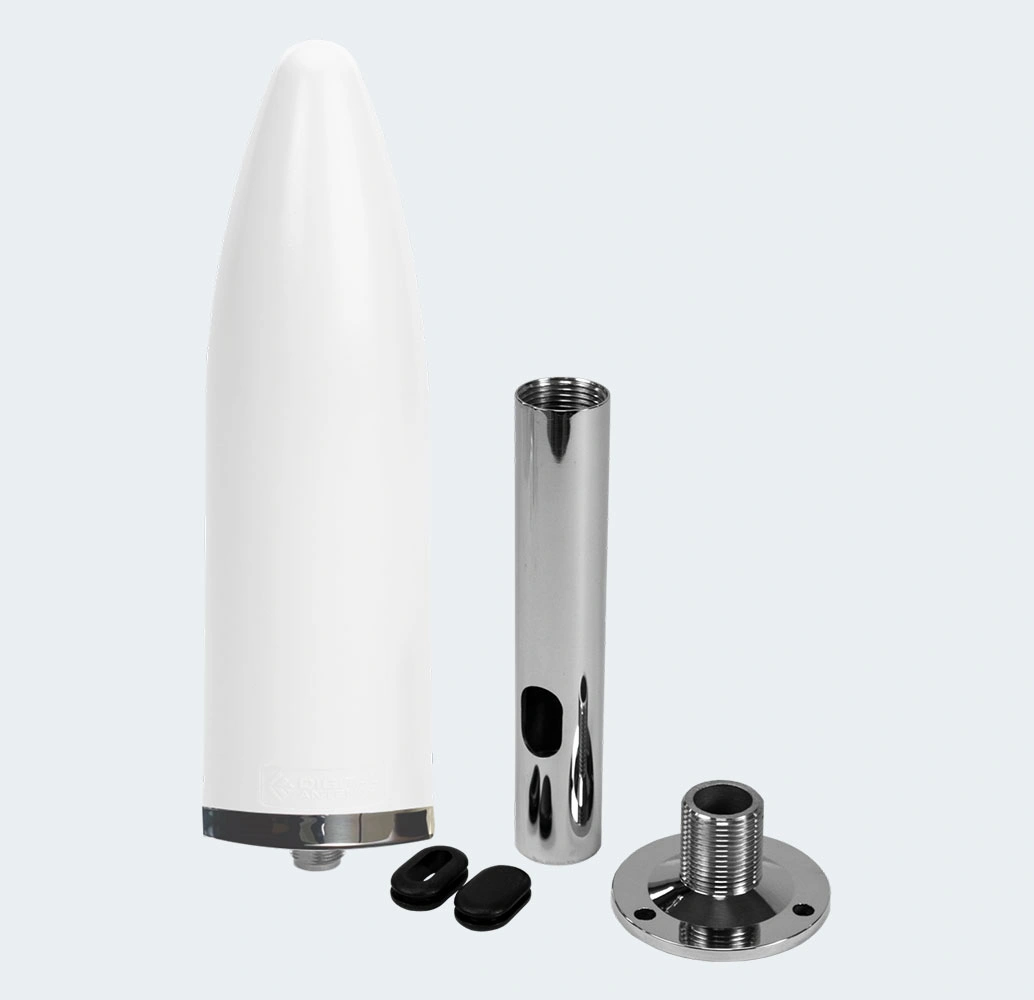

The Digital Antenna 1664-PW is a high-performance, multi-carrier cellular antenna built to deliver stronger, more reliable 5G, 4G, and LTE connections. Covering a wide frequency range of 600–3000 MHz, this omni-directional antenna is built for performance and endurance. The 1664 features a Type N female connector for a reliable coaxial connection and 316 stainless steel 6” ferrule with 1″-14 threads and 1”-14 deck mount.
- Sleek 8.5″ low-profile design delivers high gain and powerful performance
- Precision copper radiators enhance signal reliability and transmission speed
- Supports Carrier Aggregation for higher data throughput and seamless connectivity
- Optimized for 5G and Land Mobile Radio, fully covering 600-3000 MHz
- N Type female base connector for secure connection to custom cable run
- Includes deck mount and 6″ ferrule for universal mounting
- Individually hand-built, tested, and precision-tuned for peak performance
- Backed by a 5-year warranty, guaranteeing long-lasting reliability
$396.20
Product Specifications
| Model Number |
1664-PW and 1664-PB |
| Radiation Pattern |
Omni-Directional |
| Peak Gain |
9dBi |
| Frequencies |
600-3000 MHz |
| Impedance |
50 ohms |
| Max Input Power |
10 watts |
| Housing |
ABS |
| Dimensions |
8.875" L x 2.375" OD |
| Weight |
8.2 oz |
| RF Connector |
N Type Female |
| Mounting |
Raised deck mount |
| Elements |
Copper - Hand soldered |
| Polarization |
Vertical |
| Wind Rating |
>160KPH |
| Operating Temp |
-30º F to +175ºF |
| Warranty |
5 Years |
| Compliance |
IP65 |
- Optimized for Multi-Carrier LTE, 4G, and 5G Applications – The high-gain, low-profile, omni-directional design captures signals from all directions, enhancing data transmission and connectivity.
- Reliable for Critical Business Communication – Supports Carrier Aggregation to deliver maximum data throughput for Machine-to-Machine (M2M) applications and high-end industrial routers.
- Ideal for Weak Signal Areas – Precision-engineered copper radiators boost signal strength with up to 9dBi gain, ensuring stronger, more stable reception.
- Built for Extreme Conditions – Includes a 1""-14, 316 stainless steel ferrule and deck mount for both marine and land-based installations.
