8′ 6dB Marine VHF w/ 20′ cable

SKU: N/A Categories: ,

Product Features

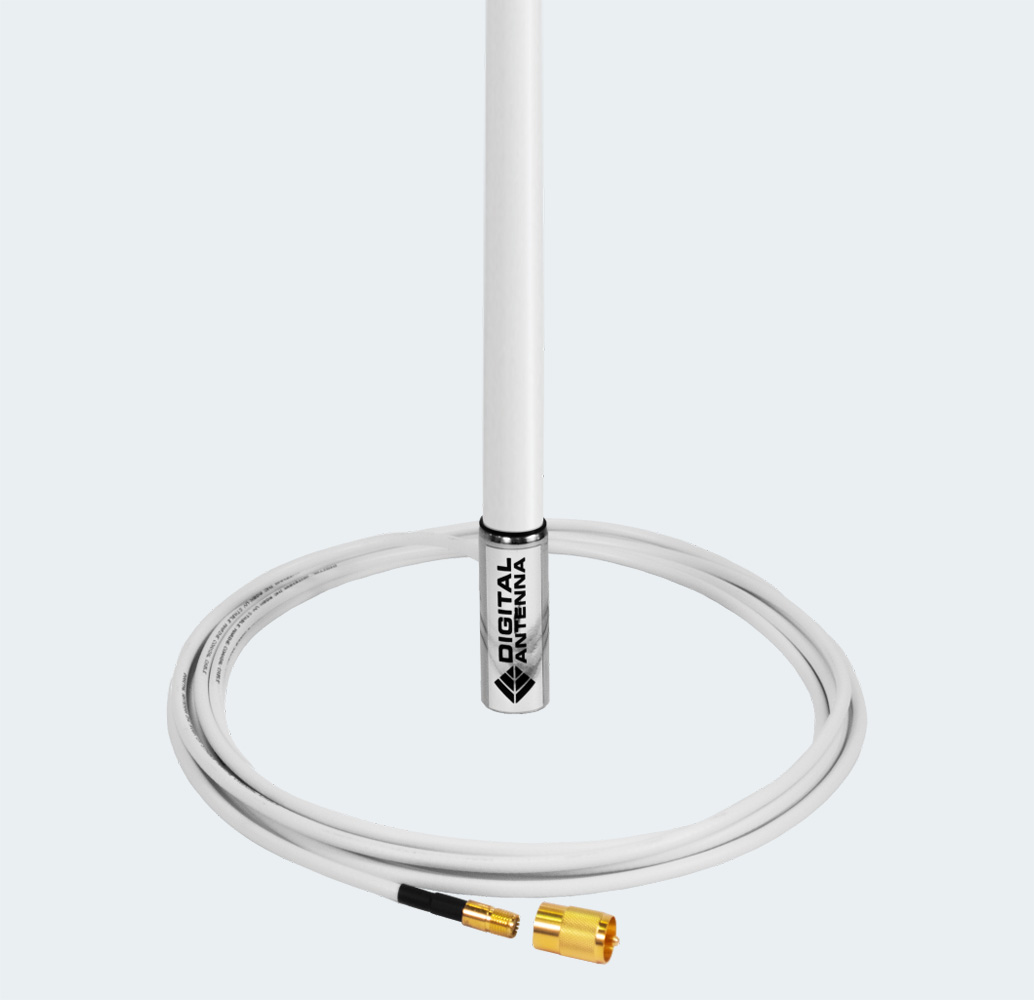

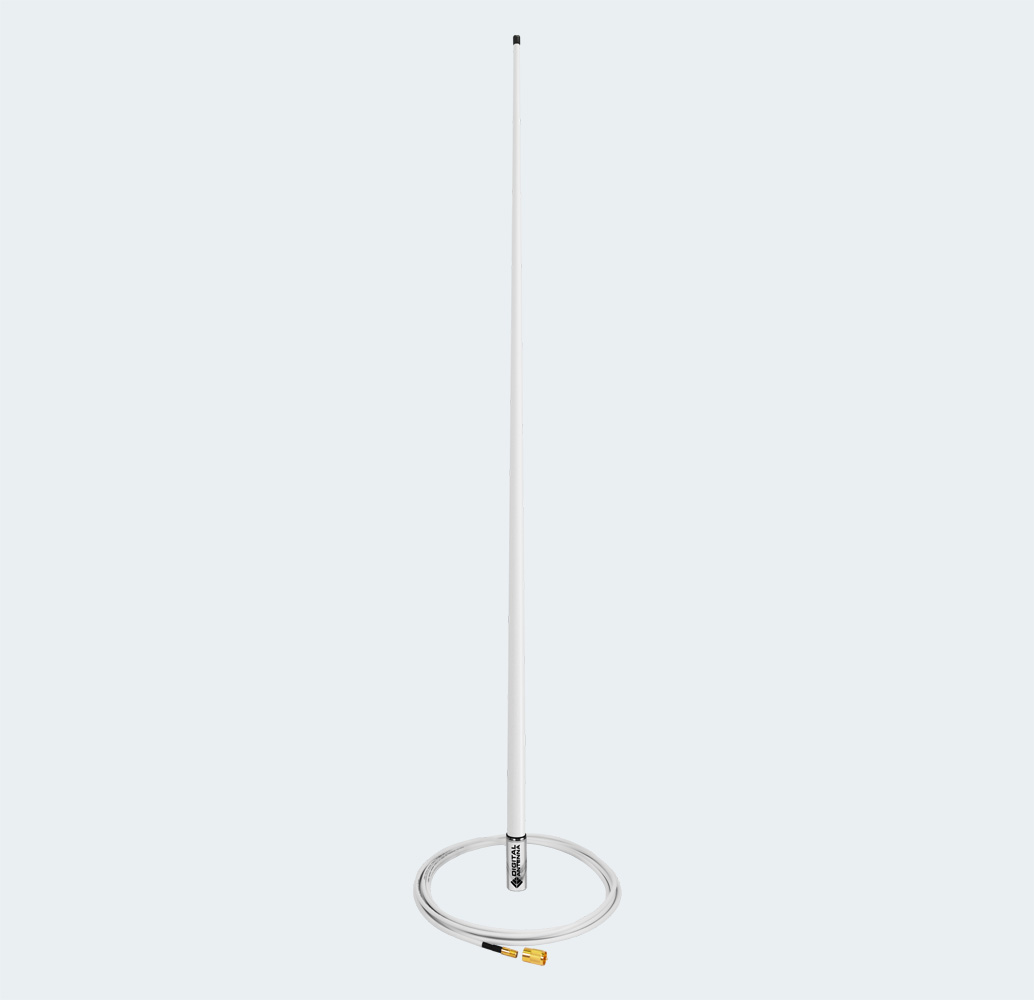

Digital Antenna’s 8′ VHF antenna delivers superior offshore performance with extended range and powerful signal reception. Built with 316 stainless steel, a high-gloss UV-resistant finish, and precision brass radiators, it maximizes analog and digital RF signals. A pre-attached mini-connector and PL-259 adapter ensure fast, hassle-free installation.

  • Easy-install mini-connector for quick and hassle-free setup
  • High-gloss urethane finish ensures UV resistance and durability
  • Powerful brass radiators maximize signal distance
  • Outstanding VSWR of <1.5:1 for maximum radiated power
  • Mounts to standard 1″-14 threaded bases for universal compatibility
  • Includes 20′ DAI exclusive RG8X for superior signal transmission
  • Hand built, tested and tuned in the USA for optimal performance
  • Backed by a 5-year warranty for long-term reliability

Price range: $529.12 through $572.20

Product Specifications

Model Number 529-VW-S and 529-VB-S
Radiation Pattern Omni-Directional
Gain 6.0dBi
VSWR <1.5:1 = 156-158 MHz
Max Input Power 100 watts
Impedance 50 ohms
Lightning Protection DC Ground
Dimensions 95” x 1” tapered OD
Exterior Finish UV stable high gloss urethane
Base 316 stainless steel
Cable 20' DAI exclusive RG8X
RF Connector mini-UHF female with PL259 adapter
Wind Rating 100 mph
Mounts 1”-14 male thread (sold separately)
Warranty 5 years
  • Greater Range & Signal Strength – 8’ height allows the signal to travel farther, extending communication range.
  • Better for Offshore & Open-Water Use - Essential for boaters venturing offshore where longer-range communication is critical.
  • Low radiation angle – 6dB gain directs the signal outward, maximizing range and clarity for powerboats, yachts, and larger vessels.
  • More Mounting Flexibility for Larger Boats - Easily mounted on T-tops, hardtops, or radar arches where height is an advantage.
